• MAC200
    Time Lapse
    Surveillance Camera
    The MAC200DN has unequaled battery life
    lasting up to 14 months on 2 D Cell batteries.
  • MAC200
    Security Camera
    up to 14 months of battery life!

Firmware Release!!! Optimized PIR Warm Up Procedure!

14 Months Battery Life Time Lapse Surveillance Camera

The Brinno MAC200DN is a battery powered portable security camera, triggered by Motion Detection (PIR) or a Fixed Capture Rate (Time Lapse) or Brinno’s new Hybrid Mode ® (Time Lapse +Motion Detection).


Hybrid Activated

<320 ft time lapse capture zone and <20+ ft motion activated zone = Never Miss a Shot

Fast Playback Video

Automatically converts images into time lapse videos. The MAC200DN lets you review 8 hours of activity in a 1 minute time lapse video!

14 months battery life

2 D cell batteries can last for up to 14 months, so you can put away your power cords!

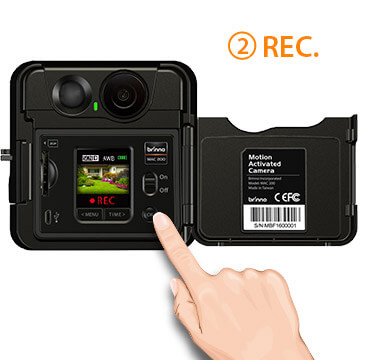

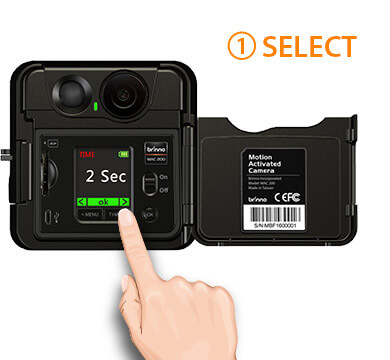

Outdoor Security 1,2,3!

Easy to set up outdoor security camera in 3 steps!

Dual Protection® Capture Mode

Time Lapse Capturing + Motion Activated

Capture any movement with either Motion Activation or a preset Time Lapse setting. The MAC200DN automatically converts photos into an easy to view/review Time Lapse Video. You can review an entire days activity in a couple of minutes!

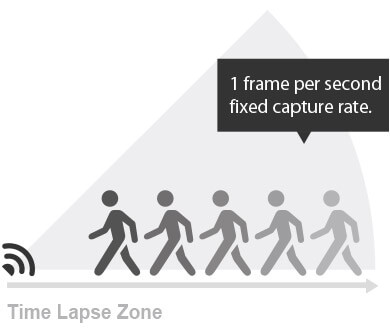

Time Lapse Mode

Time Lapse Capturing

In Time Lapse Mode, you can record at a distance of up to 320 feet using a 1 frame per second fixed capture rate.

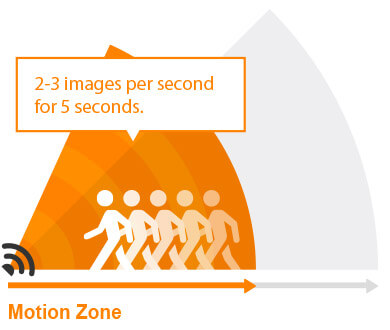

Motion Mode

Motion Activated

In Motion Mode, when the PIR motion sensor is triggered by any movement in a 20 feet zone, the camera captures 2-3 images per second for 5 seconds

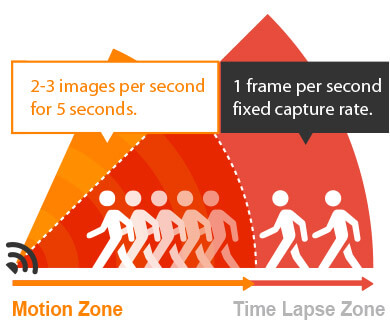

Hybrid Mode

Hybrid Mode

Hybrid Mode consists of time lapse + motion detection, the camera switches from 1 frame per second Time Lapse Mode to Motion Mode (2-3 images per second for 5 seconds) when a moving object enters the 20 feet motion zone.


The Brinno MAC200DN is a battery powered security camera, waterproof, durable, standalone, so it’s safe for indoor and outdoor use. Turn it on, let it record every movement.

Home security
Home security
Backyard security
Backyard security
Outdoor Security
Outdoor Security
Parking lot security
Parking lot security
Illegal throw away watching
Illegal throw away watching
Temporary event security
Temporary event security
Time Lapse Photography
Time Lapse Photography

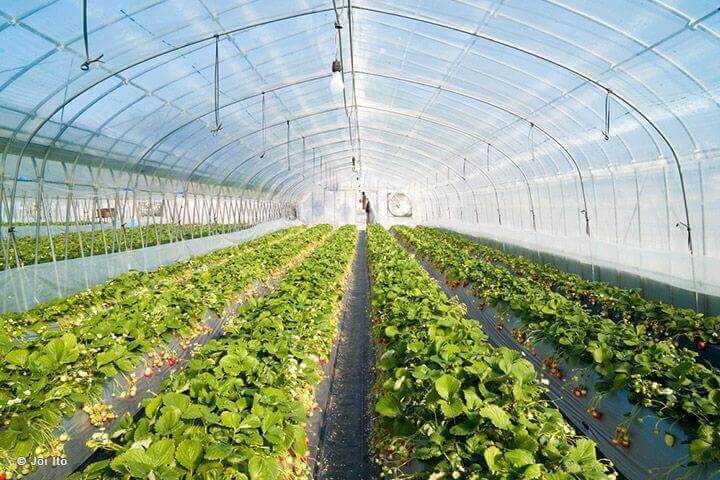

Farm security
Farm security

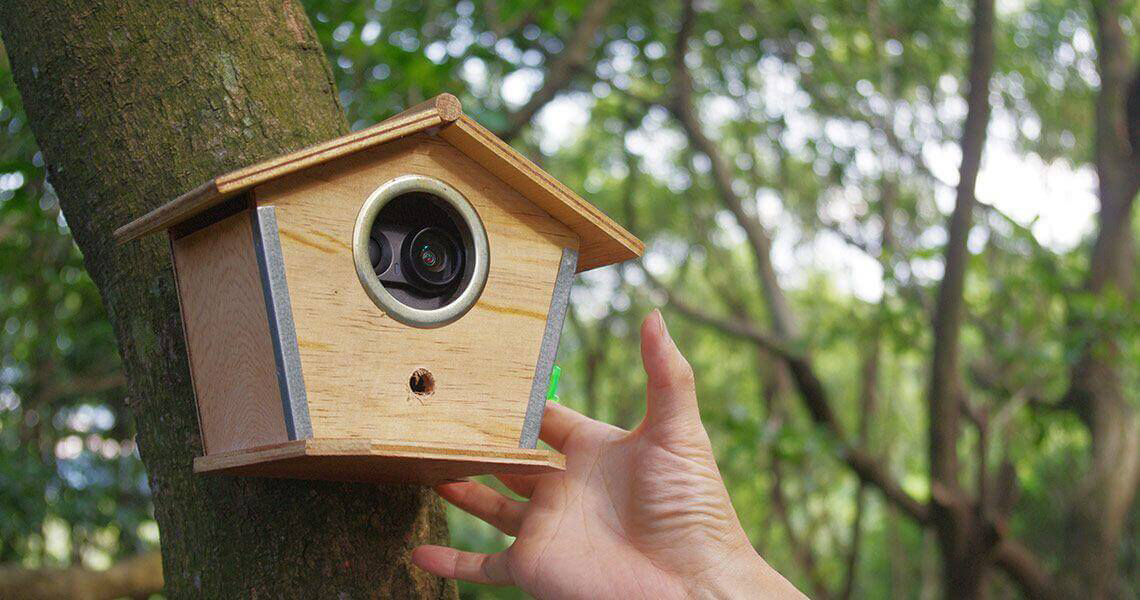

Wildlife camera
Wildlife camera

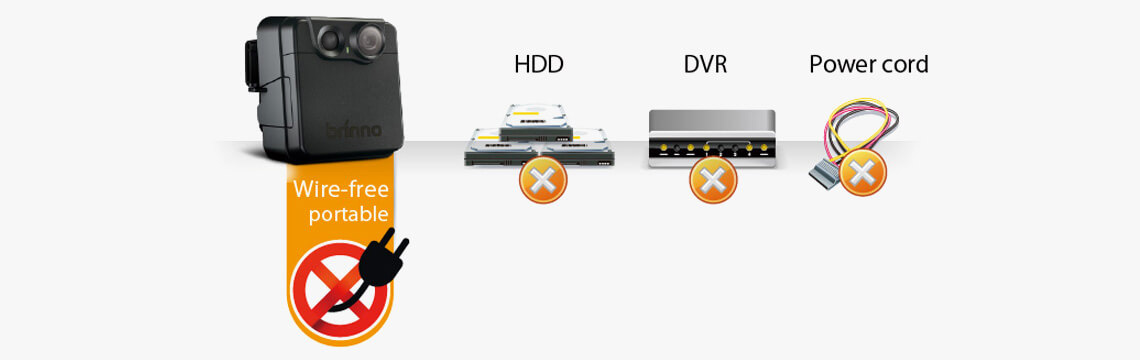

100% DIY, 100% Portable

Battery powered = Wire-free

Not a complicated DVR security system, no complicated power cord wiring to set up. 100% DIY. 100% Wire-free. 100% Portable.

78 days battery life
Smart Night Vision

Set your latitude, the camera will automatically turn on Night Vision at sunset and turn off Night Vision at sunrise. So the camera can capture infrared images* at night and capture regular images in daylight.

Night Vision

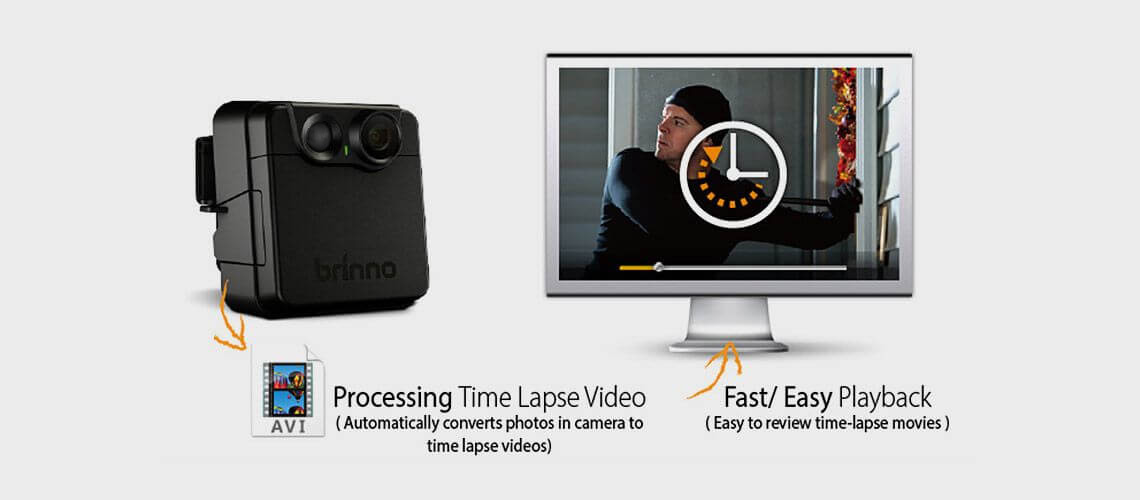

Fast Playback Time Lapse Video

Check monthly activity in several minutes video

Brinno’s MAC200DN - Motion Activated Camera provides a whole new FAST/EASY PLAYBACK concept for you to EASILY review videos, as it automatically converts thousands of images into time lapse videos. This makes reviewing your videos easy and quick!

78 days battery life
100% DIY, 100% Portable

100% DIY, 100% Portable

Forget the power cord, Ethernet line or DVR system! The MAC200DN is your 100% DIY, 100% wire-free, 100% portable security camera you can use anywhere, anytime.

Dual Protection

Dual Protection

Brinno’s new Hybrid Mode ®
Preset time settings to take photos (Fixed capture rate)+ Motion Activation for video capture, provides unprecedented dual protection.

10x Outlook Range

10x Outlook Range

Images captured at a Fixed Capture Rate, in the Time Lapse mode, cover a range over 100 meters deep.

14 Months Battery Life

14 Months Battery Life

The MAC200DN has unequaled battery life lasting up to 14 months on 2 D Cell batteries.

< 1 Sec. Rapid Wake Up

< 1 Sec. Rapid Wake Up

Brinno’s MAC200DN has excellent power saving technology, by providing super long lasting standby time, combined with the ability to rapidly wake up! So you’ll never miss a shot!

Fast Playback Video

Fast Playback Video

Brinno’s MAC200DN captures and converts thousands of photos into a Time Lapse video.

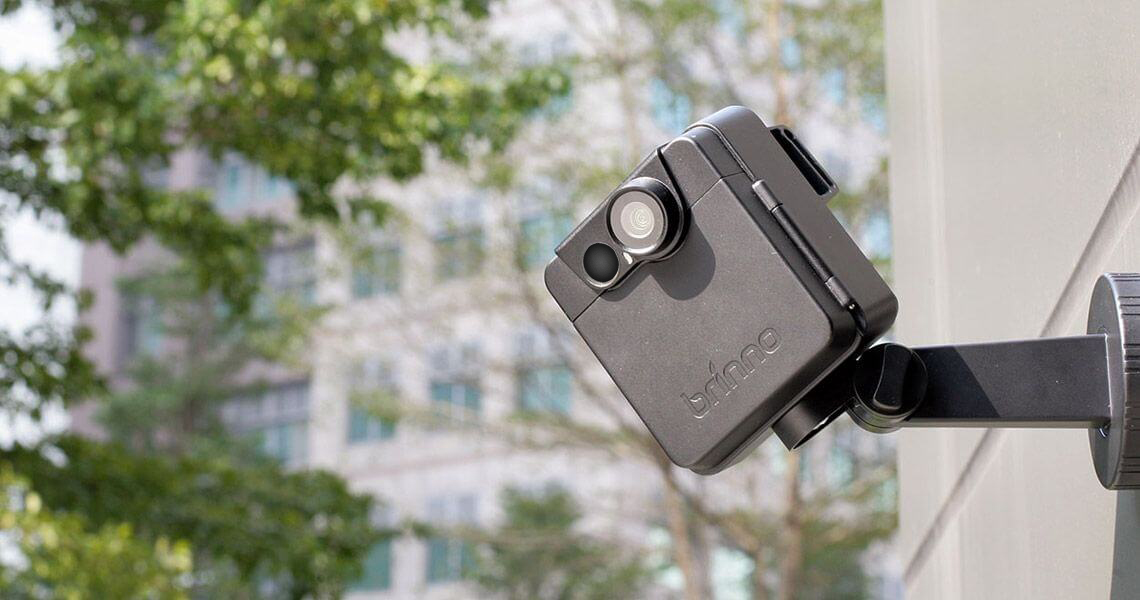

Water-proof, Outdoor Security Camera

Weather resistant, safe for outdoor use

We know most construction site are outdoors; in order to let you capture your entire construction project in any weather, we provide a weather resistant housing to protect your construction camera.

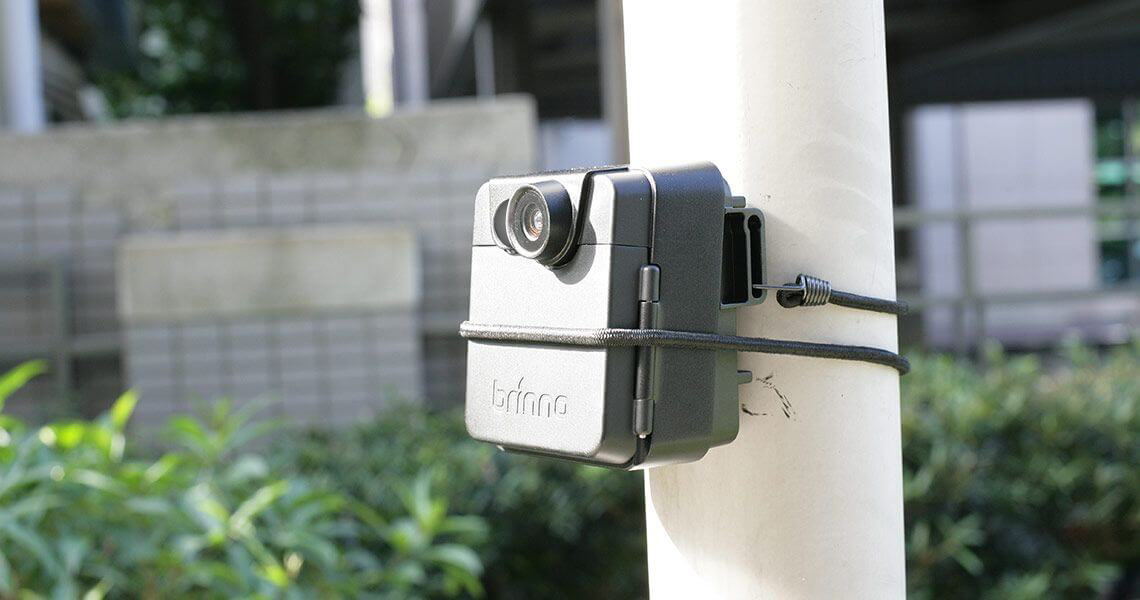

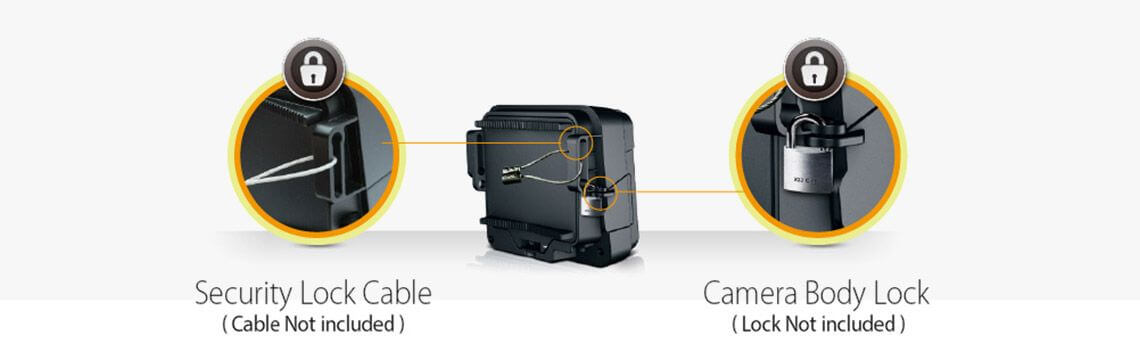

Camera Security Lock

We offer multiple points to secure your MAC200DN

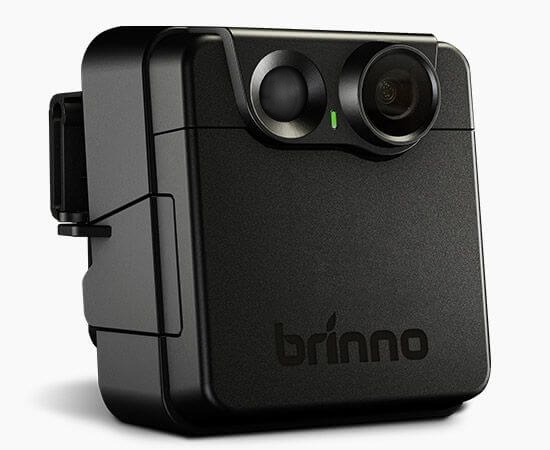

Brinno MAC200DN Specification
Model MAC200DN MAC200
LCD Screen 1.44" TFT LCD
Waterproof IPX4
Capture Mode
Motion Activated PIR motion detection (captured 2~3 frames per second)
Time Lapse Fixed Capture Rate (captured 1 frame per time interval)
Hybrid Combine Time lapse and Motion activated mode
Motion Sensor
Detect Distance 6 m
Detect Angle 100°
Night Vision option
(Always turn Night Vision on)
(Always turn Night Vision on)
(Always turn Night Vision off)
(the camera will auto turn Night Vision on at sunset, turn Night Vision off at sunrise )
Image Sensor
Type 1/4" CMOS sensor
Resolution 1.3 Mega pixel
Pixel size 2.8 um
Sensitivity 2500 mV/lux-sec (Good low light quality)
Optics Lens
Aperture f2.0
Field of View 70°
Focal Length 3.0 mm (Actual)
28 mm (35mm equivalent)
Focus Distance 60 cm(Minimum)
Video Fast Playback Time Lapse Video
Format AVI
Resolution 720P( 1280x 720)
Memory Storage SD Card (Supported up to 32 GB)
Power source 2x D cell Batteries
Battery Life 14 months*
External Power DC IN: 5V 1A DC Plug
Camera Body Dimension
Size (DxWxH) 4.17x4.33x3.07 in (106x110x78 mm)
Weight 9.7 oz (275 g) (without batteries)
Color Black
Operating Temperature
-4°F ~ 122°F (-20°C ~ 50°C)

NOTE: Batteries last 14 months usage under time lapse mode. (time interval setting: 5 minutes.)

  • The estimated battery life are tested under room temperature conditions of 25 degrees Celsius.
  • Battery life may vary based on environmental conditions, temperature, and many other factors; actual results will vary.
Brinno ships the exact product shown in the picture, however, colors and photos shown may vary from actual product colors due to computer monitor display settings. Therefore what you see here may be different then the actual product shipped.
Package Contents
